泰克Tektronix 高压差分探头TDP1000

品牌
泰克Tektronix

型号
TDP1000

◆ 1 GHz and 500 MHz probe bandwidth;
◆ <1 pF differential input capacitance;
◆ 1 MΩ differential input resistance;
◆ ±42 v (DC + pk AC) differential input voltage;
◆ >18 dB CMRR (at 250 MHz 50X attenuation)。

分享到:
TDP1000

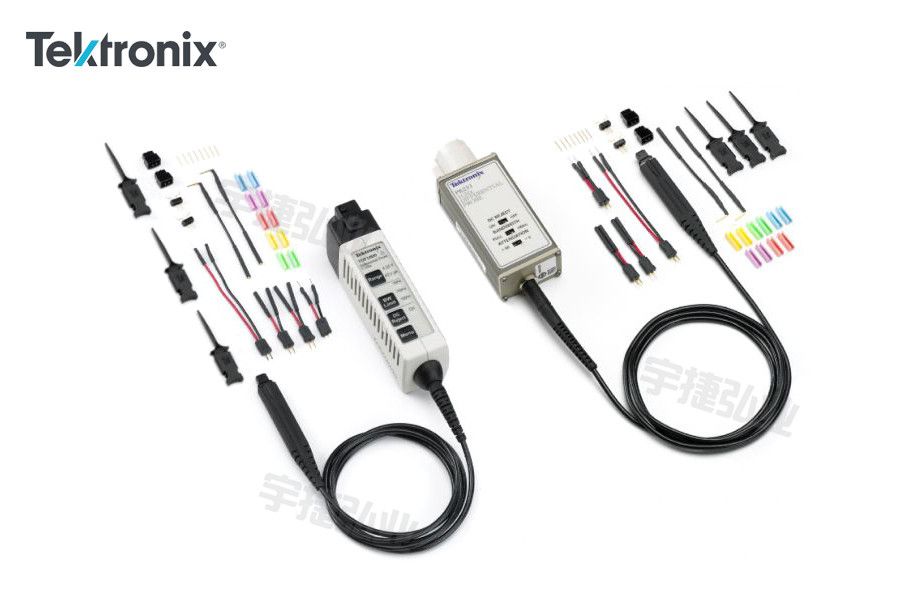

  The TDP1000, TDP0500, and P6251 High-voltage Differential Probes provide excellent high-speed electrical and mechanical performance required for today's Switch Mode Power Supply (SMPS), CAN/LIN Bus, and high-speed digital system designs.

Key performance specifications

  ◆ 1 GHz and 500 MHz probe bandwidth

  ◆ <1 pF differential input capacitance

  ◆ 1 MΩ differential input resistance

  ◆ ±42 v (DC + pk AC) differential input voltage

  ◆ >18 dB CMRR (at 250 MHz 50X attenuation)

Key features

  ◆ Outstanding electrical performance
